Electric Mini Buses Zero Emission Minibus Passenger Capacity 11 Seaters Battery Capacity 80kwh

Electric Mini Buses Zero Emission Minibus Passenger Capacity 11 Seaters Battery Capacity 80kwh

Luogo di origine:

Chengdu, Cina

Marca:

ZEVAUTO

Certificazione:

ISO, CE

Numero di modello:

CDL6540URBEV

Contattaci
Chiedi un preventivo
Dettagli del prodotto
Nome del prodotto:
Minibus elettrici
Tipo:
Autobus urbano pubblico
Tipo di FULE:
Autobus urbano
Dimensioni (mm):
5405*2050*2880
Distanza tra le ruote ((mm):
3600
Trasmissione:
Trasmissione automatica
Capacità passeggeri:
11 posti
Parte anteriore/sospensione posteriore (millimetri):
1005/800
Approccio/partenza (º):
14/23
Velocità massima:
69 km/h
sospensione:
Spring fogliare
Sterzo:
Sistema EPS con volante regolabile in quattro direzioni
Frenata:
Freni a disco anteriori e posteriori
Pneumatico:
225/75R16
Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
USD 60000-70000 Unit
Imballaggi particolari
imballaggio nudo
Tempi di consegna
25-30 giorni lavorativi
Termini di pagamento
T/T, L/C
Capacità di alimentazione
25000 unità/all'anno
Descrizione del prodotto
Description

5.4m electric mini buses zero emission minibus public city bus passenger capacity 11seaters for urban transportation system. Small size with large Capacity. Ample spave, simple and refreshing interior, more comfortable driving and riding.

5.4 meter electric mininibus Zero emission minibus ev bus has inherent advantages in terms of turnning coeffient and road coocupancy and will be the main bus force to supplement capacity in the future cities.

Product Paramenter
Model CDL6540URBEV
Appearance parameters
Vehicle dimension (mm): 5405*2050*2880 Maximum speed(km/h) 69
Number of seats (persons): 10-11seats, may change with seat layout door arrangement, Power battery brand CATL
Steering LHD Battery Capacity 88.87kwh, LiFePo4
Transmission Auto transmission Suspension Leaf Spring and hydraulic telescopic shock absorber
Wheel base(mm) 4100 AC With
Body Structure Cathode coating Floor Structure Low entry
Mileage(A/C on, 65% loaded):

200-300km

May differ slightly, subject to actual running temperature, road condition, slope, driving behavior etc.

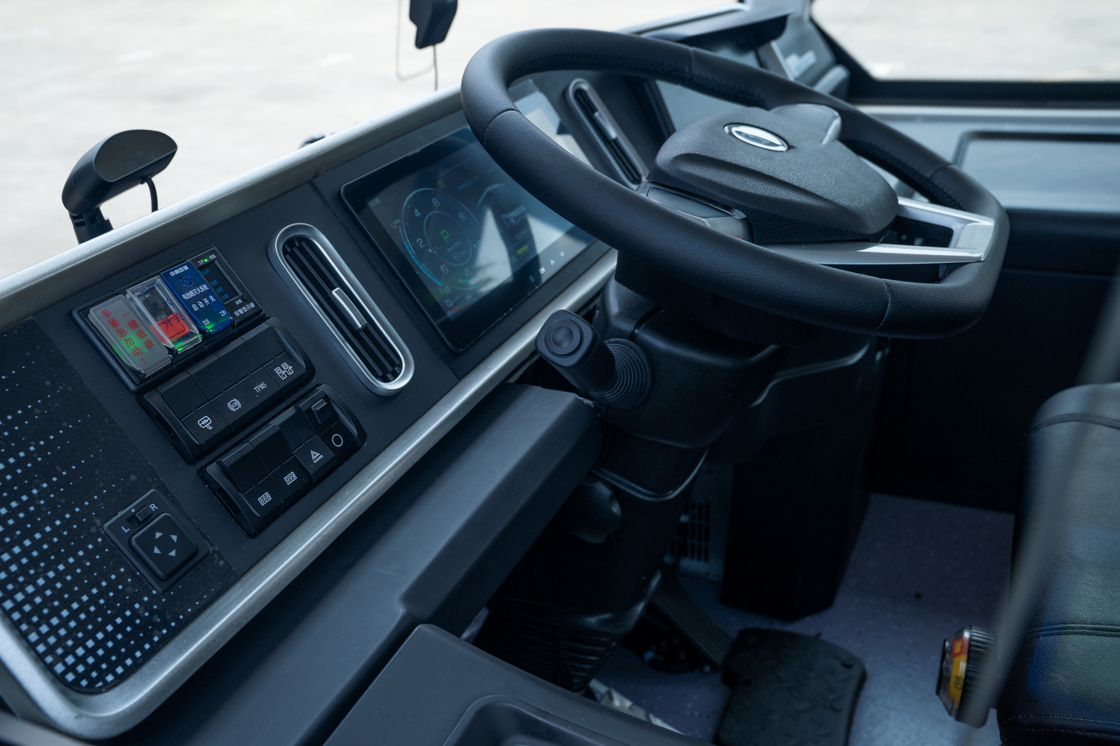

Interior display

A Comfortable, Stability And Safe Driving Environment

5.4m electric city bus combines modern design with meticulous attention to detail, blending ergonomics and comfort seamlessly. Key features include a nail-free construction throughout the vehicle, an aesthetically pleasing ceiling with ambient lighting, streamlined handholds, and a sleek design with hidden screws for a clean look, Handrails are thoughtfully attached to the sidewalls instead of the floor, enhancing both space and convenience. Every element is crafted to ensure a quiet, comfortable, and enjoyable journet for passengers.

Electric Mini Buses Zero Emission Minibus Passenger Capacity 11 Seaters Battery Capacity 80kwh 0

Advantages
  • Environmentally friendly with zero emission.
  • Powerful, matched with high-power drive motor, the gradeability can reach 19%
  • Reliable and durable vehicle.
  • Safe and comfortable driving experience.
  • Easy maintenance
  • Integrated control for driving at ease
  • The electric city bus with humanization design, high operation stability, excellent performance and reasonable internal layout to extend passenger's standing area.
  • Concise suspended hanging design of LED.
  • Openable front bumper for easy maintenance.
  • Delicate and neat layout of wiring harness.
Customization
  • Electric City Bus length:5.4m
  • Interior accept customization.
  • Cushioned passenger seats come as optional to meet the needs of different customer.
  • Passenger seats and curtains can be selected according to customer needs.
  • Solid Painting design. Color:optional
Company Info

Headquarted in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. From it's foundation in 2006,

ZEV's culture of continuois innovation has made it a leading manufacturer in China. Depending on the research platforms including the enterprise technology center, test center.

ZEV has 2 plants, annual production capacity reach 25000units. ZEV has formed a 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was rewarded 825 units 12m full electric city bus bidding of Chengdu Transport Cooperation, among which 400units were in service during the 31st FUSU World University Games.
